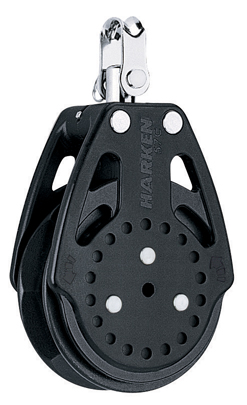

The Carbo Ratchamatic® is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase. Shifting between ratchet and light-air modes is seamless.
Sheave Ø (mm)75 mm
Length (mm)137 mm
Weight (g)238 g
Shackle pin Ø (mm)6 mm
Maximum line Ø (mm)12 mm
Maximum working load (kg)341 kg
Breaking load (kg)1361 kg
Holding power w/180 degree wrap 50 lb (23 kg)15:1
Harken Part Number: 2680
